MOTOR GRADERS

Arx offers a complete range of motor graders designed to handle diverse applications from building and maintaining haul roads in mines, constructing roads and highways, at airports, or general heavy construction.

The range includes models ranging from the compact G1200, to the versatile G1700 & G2100, to the powerful G3200. Built around a common engineering philosophy, the graders embody Arx’s commitment to ‘Value That Works’ through reliable, productive, and ergonomic motor graders to suit diverse site needs and deliver high productivity with low costs of ownership

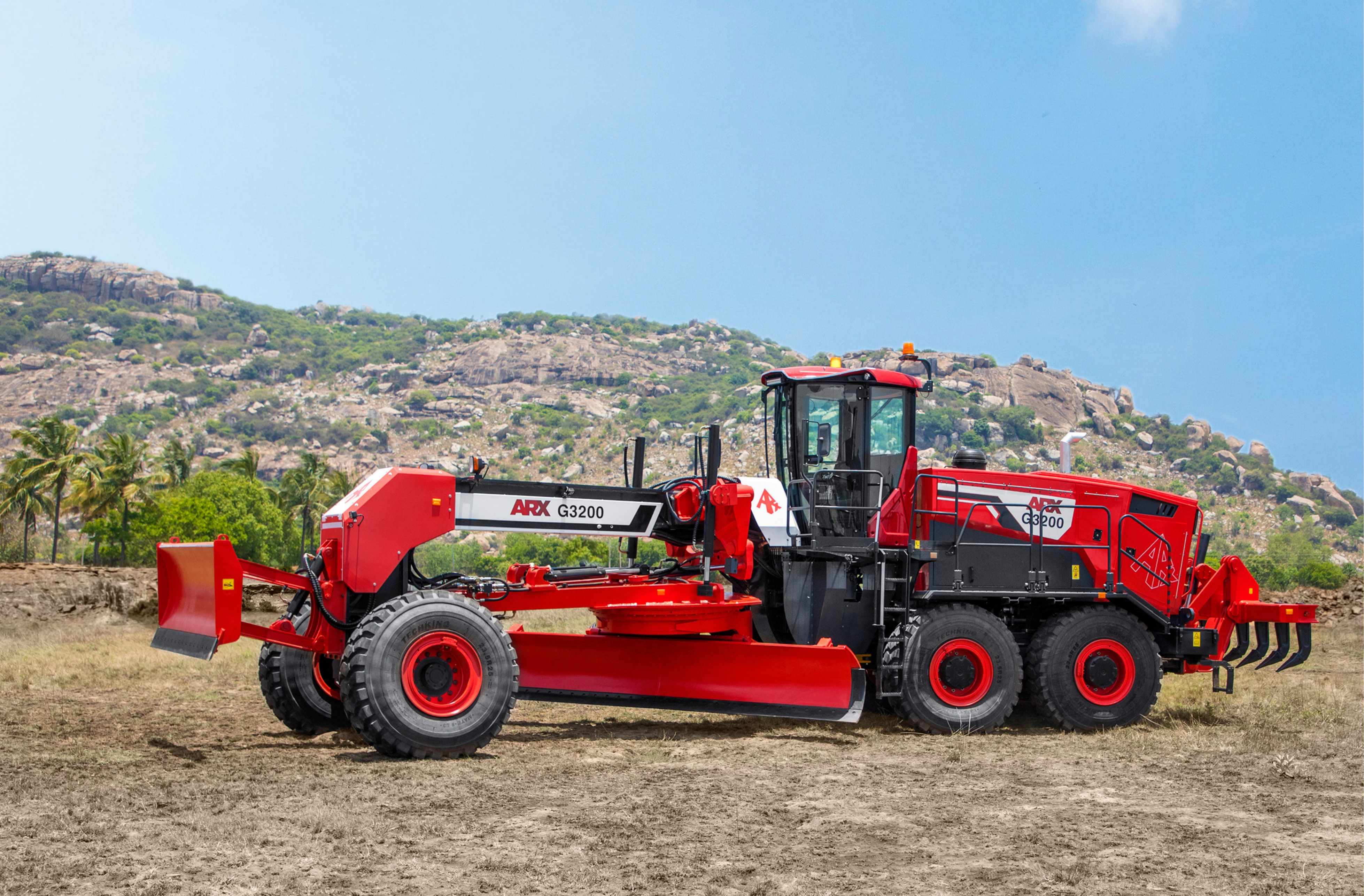

Arx G3200

  • Gross horsepower310 hp @2100 rpm
  • Standard Moldboard width16 feet
  • Gross base vehicle weight (typically equipped): 33,430 kg
More info

Arx G2100

  • Gross horsepower: 260 hp @2200 rpm (BS V)
  • Standard Moldboard width 14 feet
  • Gross base vehicle weight (typically equipped): 21,730 kg
More info

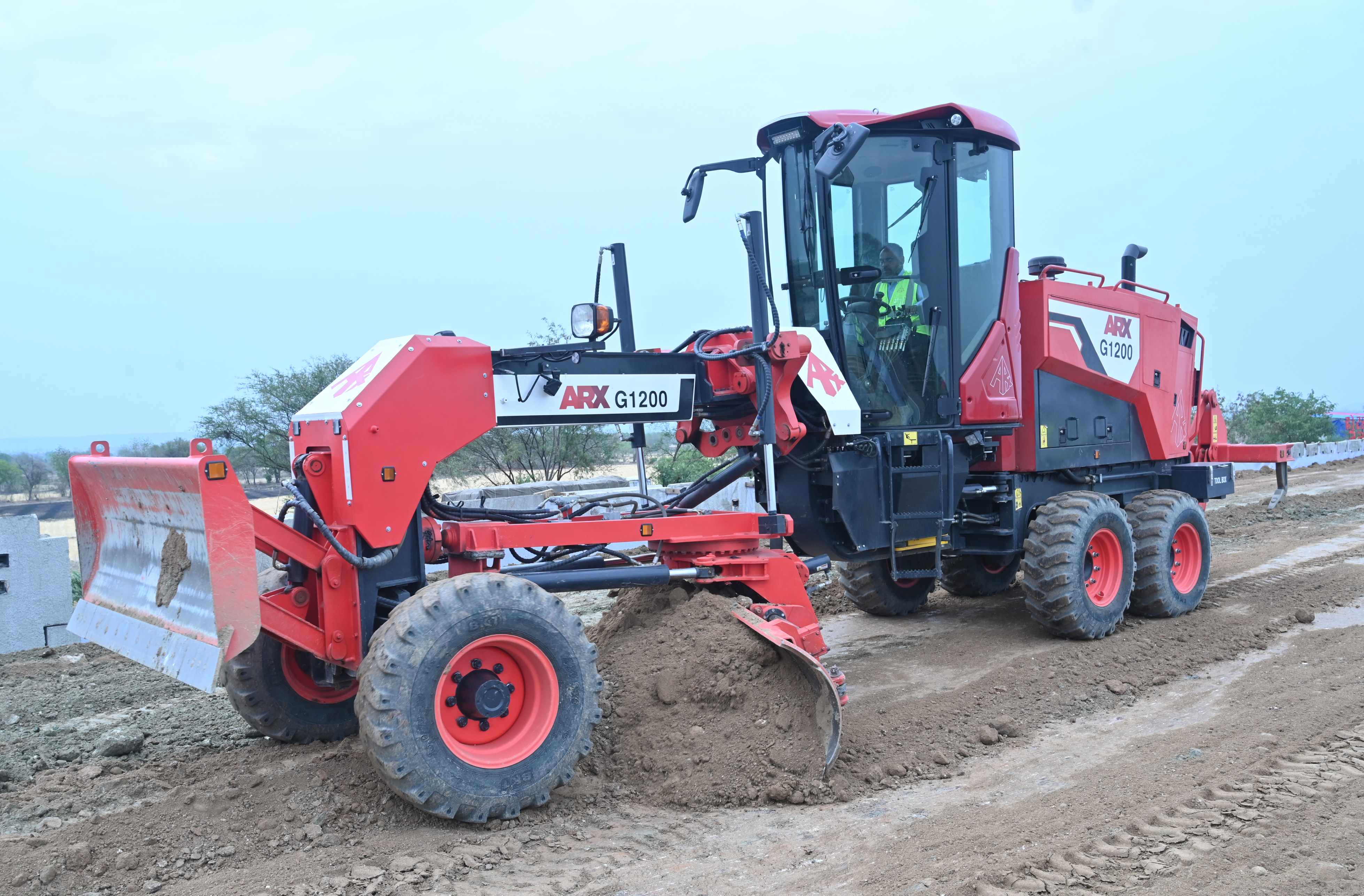

Arx G1200

  • Gross horsepower: 121 hp @2200 rpm (BS V)
  • Standard Moldboard width12 feet
  • Gross base vehicle weight (typically equipped) 13120 kg
More info
benefits
Specifications

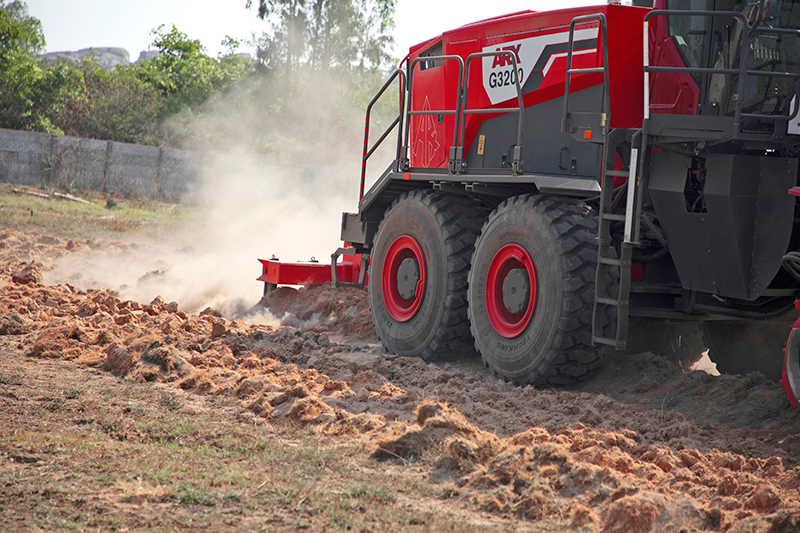

Maximise Performance and Productivity

  • Finely tuned, state-of-the-art driveline and an advanced hydraulic system to balance optimal torque and speed to improve productivity and fuel efficiency. Drivelines are matched for a high tractive effort and fuel efficiency.
  • Integrated torque convertor and lock-up clutch to enable 15 to 20% fuel savings.
  • A superior cooling and variable demand fan drive system for reduction in noise and fuel consumption.
  • Optimum weight distribution to maximize blade down force and drawbar pull.

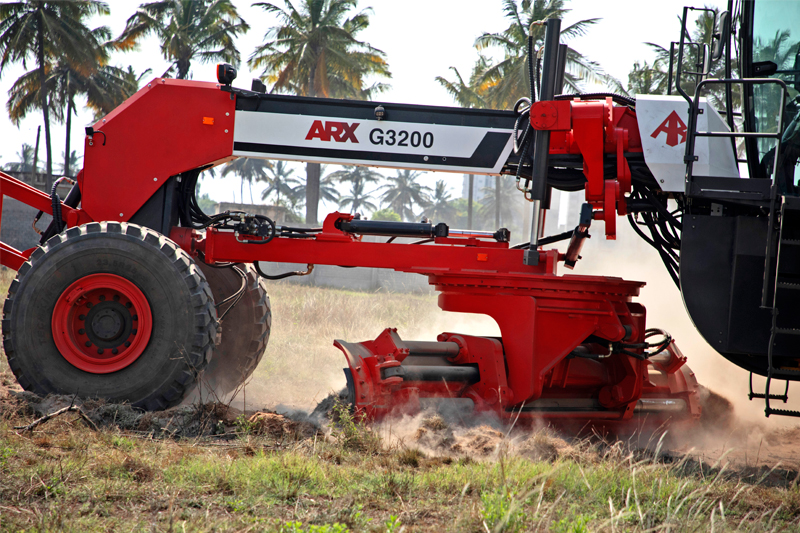

Maximise Precision and Reliability

  • Advanced load sensing hydraulic systems for fuel efficiency, and superior control & precision in hydraulic operations.
  • Durable and robust structures that includes a heavy-duty, box-construction boom with a reinforced gooseneck to withstand heavy usage and exceptional working life expectancy.

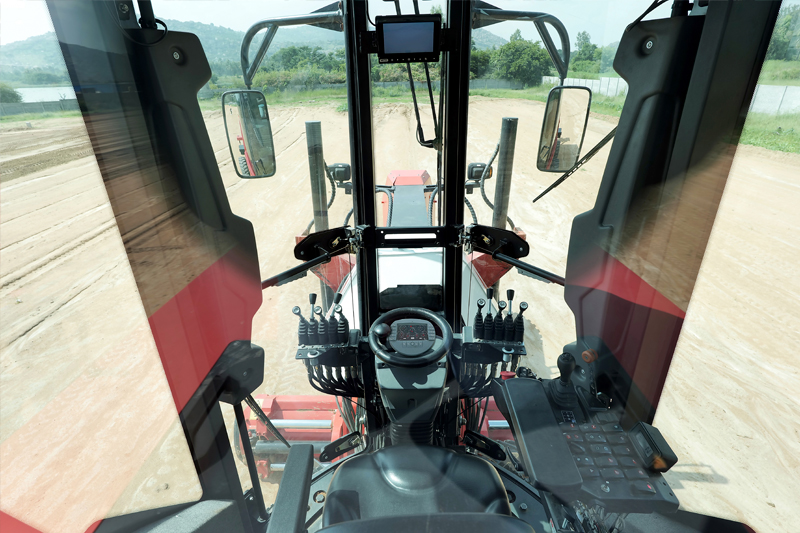

Maximise Convenience and Control

  • Exceptional all-round visibility in the operator's cabin is fitted with an air suspension seat, HVAC, 7-inch colour display in-built inside the tilt and telescopic steering column.
  • Exceptional all-round visibility in the operator's cabin is fitted with an air suspension seat, HVAC, 7-inch colour display in-built inside the tilt and telescopic steering column.

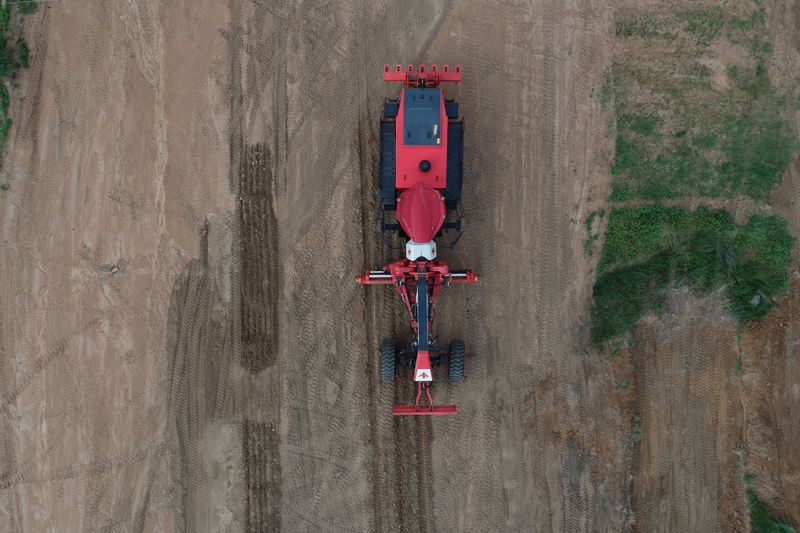

Maximise Safety and Serviceability

  • Integrating design and advanced monitoring systems and protective features for safe and easy maintenance.
  • A full-fledged slewing ring that eliminates shoes. The internal gear with induction hardened teeth and roller bearing made with high precision steel are low maintenance and parts available as part of the service kits
  • Ergonomically designed rear canopy for easy service access
  • LED work lights are provided on the machine for efficient and safe night working while consuming less power. Front headlights with built-in turn signal indicators for night driving and LED-type combination tail lights.
  • All key parameters are displayed on the display along with a self-diagnostic troubleshooting guide.

G3200

ParameterSpecification

Engine

  • Cummins L 9 (BS V)
  • IntegraGross horsepower 322 hp@ 2100 rpm

Operating Weight

  • Gross Vehicle Weight: Base machine (Fully fuelled, no attachments) – 29,900 kg
  • IntegraGross horsepoGross Vehicle Weight: Fully Equipped (Rear Ripper, Front Dozer, fully fuelled): 33,430 kgwer 322 hp@ 2100 rpm

Operator Environment

  • Ergonomically designed, fully enclosed cabin with HVAC system.
  • Air suspension seat
  • 7-inch, colour display in-built into the steering column.
  • 2 Front headlight for driving
  • 7-inch, colour display in-built into the steering column.
  • 2 LED combination tail lights
  • 13 nos. LED work lights
  • 2 amber Strobe/Beacon lights on cabin roof

Wheels

  • Tyre: 23.5 R25, Radial
  • Rim: 19.5 inches (3-piece)

Moldboard

  • 16 feet (standard)
  • Maximum lift above ground – 395 mm
  • Maximum grading depth – 686 mm
  • Maximum blade position angle - 60°
  • Drawbar pull: 20,400 kg
  • Blade down force (max) : 16,905 Kgf

G2100

ParameterSpecification

Engine

  • Cummins QSB 6.7 (BS V)
  • Gross horsepower 260 hp@ 2200 rpm

Operating Weight

  • Gross Vehicle Weight: Base machine (Fully fuelled, no attachments) – 21,730 kg
  • Gross Vehicle Weight: Fully Equipped (Rear Ripper, Front Dozer, fully fuelled): 23,900 kg

Operator Environment

  • Ergonomically designed, fully enclosed cabin with HVAC system.
  • Air suspension seat
  • 7-inch, colour display in-built into the steering column.
  • 2 Front headlight for driving
  • 7-inch, colour display in-built into the steering column.
  • 2 LED combination tail lights
  • 13 nos. LED work lights
  • 2 amber Strobe/Beacon lights on cabin roof

Wheels

  • Tyre: 23.5 R25, Radial
  • Rim: 19.5 inches (3-piece)

Moldboard

  • 16 feet (standard)
  • Maximum lift above ground – 395 mm
  • Maximum grading depth – 686 mm
  • Maximum blade position angle - 60°
  • Drawbar pull: 20,400 kg
  • Blade down force (max) : 16,905 Kgf

G1200

ParameterSpecification

Engine

  • Cummins QSF 4.5 (BS V)
  • Grosshorsepower 121 hp@ 2200 rpm

Operating Weight

  • Gross Vehicle Weight: Fully Equipped (Rear Ripper, Front Dozer, fully fuelled): 13,120 kg

Operator Environment

  • Ergonomically designed, fully enclosed cabin with HVAC system.
  • Air suspension seat
  • 7-inch, colour display in-built into the steering column.
  • 2 Front headlight for driving
  • 7-inch, colour display in-built into the steering column.
  • 2 LED combination tail lights
  • 13 nos. LED work lights
  • 2 amber Strobe/Beacon lights on cabin roof

Wheels

  • Tyre: 16 x 70 – R20. 14 PR BIAS.
  • Rim: 8.5 inches

Moldboard

  • 12 feet (standard)
  • Maximum lift above ground – 405 mm
  • Maximum grading depth – 500 mm
  • Maximumblade position angle - 90°
  • Drawbar pull: 5,380 kg
  • Bladedown force (max) : 7,600 Kgf
