Cargo Handling Products

Indital Reachstackers, Empty Container Handlers and Forklifts, renowned for their strength, precision handling and great value for money.

reach stackers
forklifts
EMPTY CONTAINER HANDLERS

Reachstackers

Strong. Reliable. Efficient.

Indital Reachstacker CS45-5

A true heavy lifter capable of handling loads upto 45 tonnes and stacking fully laden containers up to five high, the Reachstacker CS45-5 has proven itself over twenty years across numerous applications. Ideal for laden container handling, this machine can be fitted with a variety of tools for a wide range of industrial applications. The Reachstacker CS45-5 also includes an Eco-Drive mode for greater fuel efficiency.
Highlights of M Series
Strength and Stability:  With a heavy-duty telescopic boom and a rigid structure made of high tensile steel, the Reachstacker CS45-5 has been designed with optimized structural weights for superior load handling capacity and life.
Easy and Safe Operation: With an optimised structural weight and new steering system, the Reachstacker CS45-5 is easier to handle and provides a smoother and more comfortable ride for your operators. Safety interlocks and LMI make the Reachstacker CS45-5 safe to operate.
Superior Performance: With an enhanced engine and transmission, you will benefit from improved drive performance, which will also help to reduce your fuel consumption. The hydraulic and drive operations have also been improved for faster and smoother lifting and lowering. The Reachstacker CS45-5 offers ECO-Drive modes, giving you three different power modes- Power, Normal and Economy - to choose from for greater fuel efficiency.

Specs

DOWNLOAD BROCHURE

Indital Reachstacker CS08-5

The Indital CS08 Reachstacker has been designed so you can move empty containers safely and easily. It can lift loads up to eight tonnes and stack containers up to five high. Easy on the pocket without compromising on reliability, the Reachstacker CS08-5 is ideal for ports, container freight stations and in land container depots.
Highlights of CS08-5
Strength and Stability: With a heavy duty, fabricated Twin beam design, the Reachstacker CS08-5 is extremely stable and safe to operate. The telescopic boom is made of high tensile steel for extra rigidity and benefits from cast nylon slide pads that are easy to replace.
Easy and Safe Operation: The Reachstacker CS08-5 is fitted with multidisc wet type hydraulic brakes which are safer and offer uniform breaking movement. The LMI system on this equipment cuts off the operation when it senses unsafe load handling. The container counter installed on the Reachstacker CS08-5 helps in keeping record of containers handled.
Superior Performance: With the telescopic spreader being integrallymounted to the mast, the Reachstacker CS08-5 has a capacity of 8000kgs, coupled with abuilt-in side shift of ±400mm, enabling you to

Specs

DOWNLOAD BROCHURE

FORKLIFTS

Quality. Reliability. Durability.

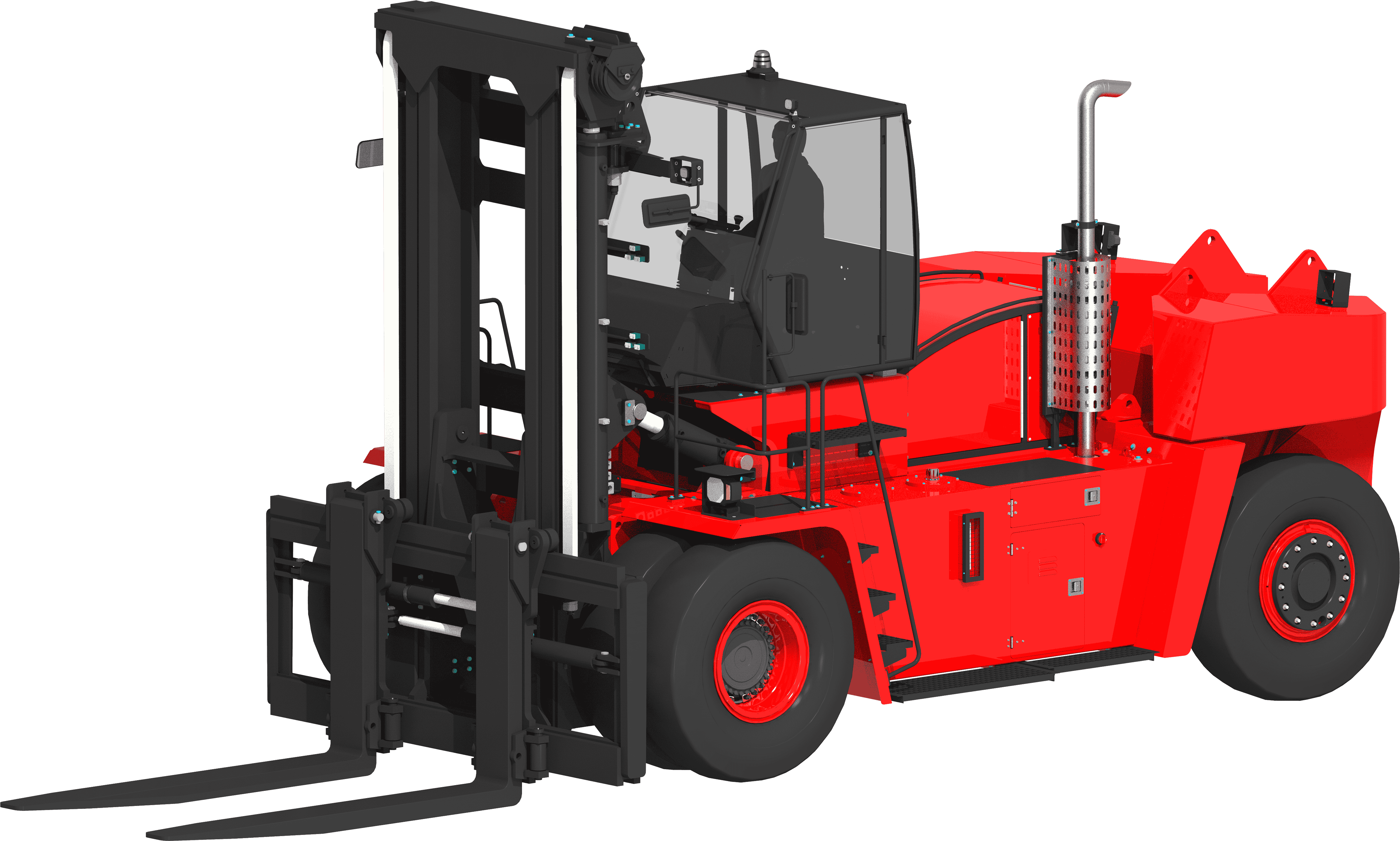

Medium Range Forklifts

FLT10, FLT12, FLT16 – M series

Indital forklifts are designed to make easy work of heavy loads in demanding and intensive work environments. They are highly stable when in operation, making them easy and safe to operate. All our forklifts come with easily accessible service points for easy and safe maintenance, reducing downtime and increasing availability.
Highlights of M Series
Strength and Stability: With a robust and monocoque design, heavy-duty 100-tonne static load capacity axles rigidly mounted to the chassis, detachable fuel and hydraulic tanks, your forklift is designed for superior strength and stability.
Easy and Safe Operation: The extra heavy-duty mast has been designed with the driver in mind. The mast’s cross ties are positioned for optimal strength and improved visibility. The lifting cylinders are mounted on the side of the mast, to ensure that the operator’s view is not obscured. Wet disc brakes have also been fitted on all wheels to make stopping quickly safer. There are additional high-capacity rollers fitted with widely spaced centers, plus separate side rollers to make loading and unloading easier. A self-cleaning pressure line filtration system has been installed to help maintain essential pumps, cylinders and seals.
Superior Performance: Indital forklifts combine the latest engine and transmission technology, so you will get a forklift that uses less fuel, without compromising on performance. This makes them cheaper to run in the long term.

Specs

Model
Horsepower
Rated Capacity
Load Centre
FLT 10
133 hp@2300 rpm
10,000 KG
900 mm
FLT 12
133 hp@2300 rpm
12,000 KG
900 mm
FLT 16
180 hp@2400 rpm
16,000 KG
1200 mm

Heavy Forklifts

FLT32, FLT35 – H series

Built to take on large loads, Indital HeavyForklifts combines a robust design with the latest technology. Proven in the field, these forklifts are known for their excellent performance, reliability and ease of use. They also boast of an enhanced cabin that improves visibility, safety and comfort.
Highlights of M Series
Strength and Stability:  With a robust and monocoque design, heavy-duty 100-tonne static load capacity axles rigidly mounted to the chassis, detachable fuel and hydraulic tanks, your forklift is designed for superior strength and stability.
Easy and Safe Operation: The extra heavy-duty mast has been designed with the driver in mind. The mast’s cross ties are positioned for optimal strength and improved visibility. The lifting cylinders are mounted on the side of the mast, to ensure that the operator’s view is not obscured. Wet disc brakes have also been fitted on all wheels to make stopping quickly safer. There are additional high-capacity rollers fitted with widely spaced centers, plus separate side rollers to make loading and unloading easier. A self-cleaning pressure line filtration system has been installed to help maintain essential pumps, cylinders and seals.
Superior Performance: Indital Forklifts combine the latest engine and transmission technology, so you will get a forklift that uses less fuel, without compromising on performance. This makes them cheaper to run in the long term.

Specs

Model
Horsepower

Rated Capacity
FLT 32
252 hp@2000 rpm
32,000 KG
1200 mm
FLT 35
252 hp@2000 rpm
35,000 KG
1200 mm
DOWNLOAD BROCHURE

Stable. Strong. Efficient.

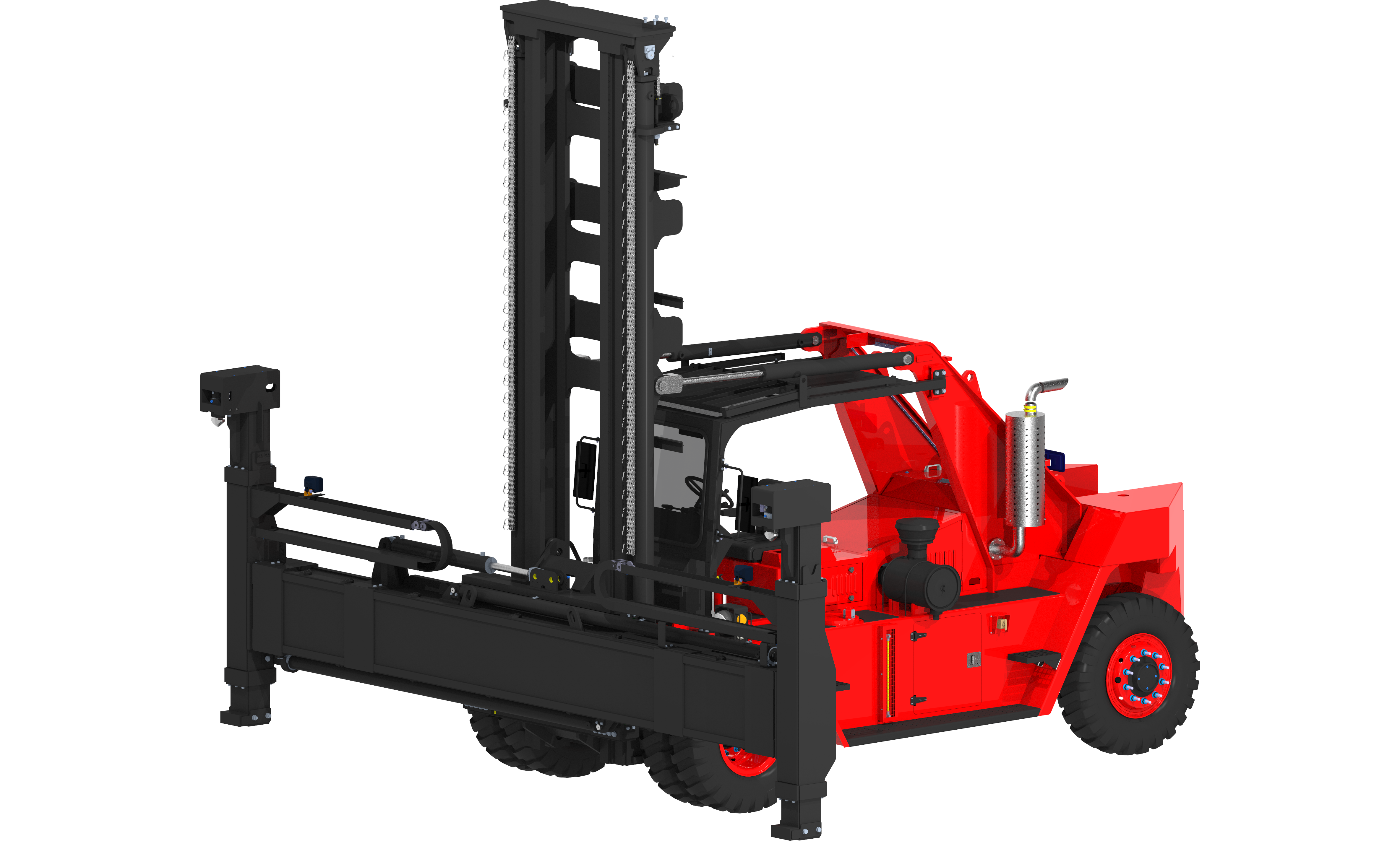

Indital Empty Container Handlers are market leaders and are proven for their strength and stability to deliver precision when it comes to container handling. These allow you to precisely and easily handle 20’ and 40’ containers, stacking them upto 3 high and 5 high with speed and efficiency.
Highlights of ECT Series
Strength and Stability: With a heavy-duty twin-beam design for strength and rigidity, the ECT Series are high-performing, stable and safe machines. Only quality heavy-duty axles are used and they are rigidly mounted to the chassis to deliver market-leading strength and stability.
Easy and Safe Operation: The heavy-duty mast is constructed of high tensile steel and designed for maximum strength. The cross ties are positioned so the operator benefits from improved visibility. Lift cylinders have been placed on the side of the mast so the driver’s view is unobstructed.
Superior Performance: Indital empty container handlers have been designed to precise maneuver and position containers upto 3 and 5 high. With the telescopic spreader being integrally mounted to the mast, they have a capacity of 6000 and 8000 kgs. Coupled with a built-in side shift of ± 200mm, you will be able to move and stack containers easily and more efficiently.

Specs (ECT 06 & ECT 08)

DOWNLOAD BROCHURE
